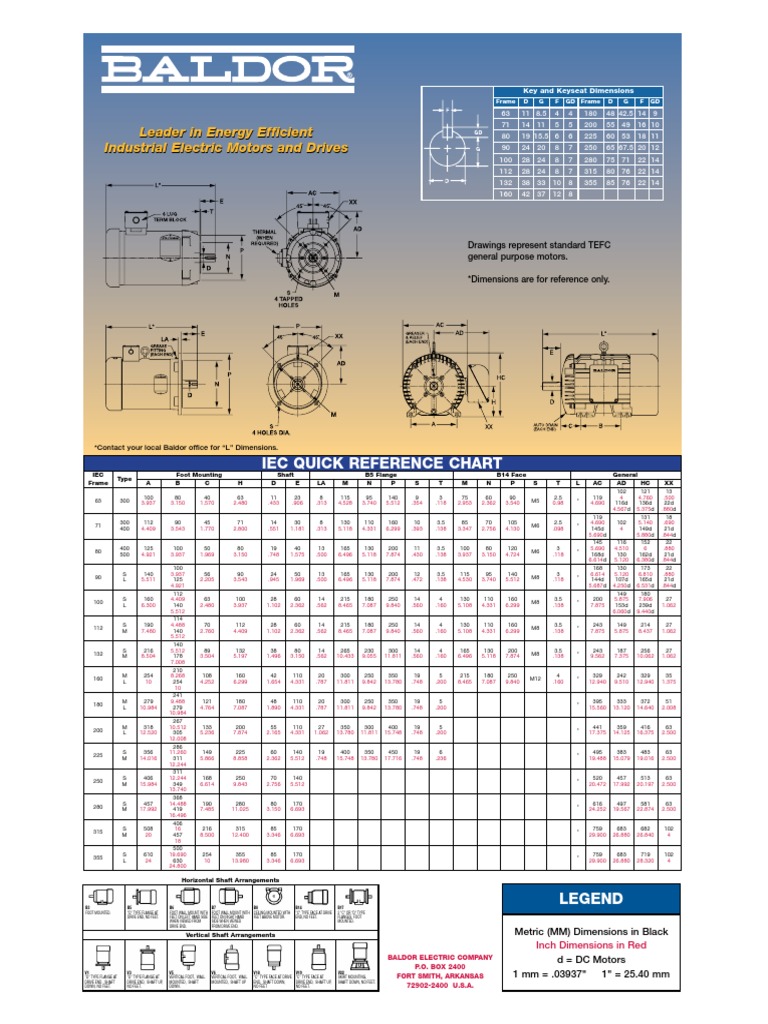

B7 foot wall mount with feet on right hand side when viewed from driv e end. Metric (mm) dimensions in black inch dimensions in red d = dcmotors 1 mm =.03937 1 = 25.40 mm horizontal shaft arrangements vertical shaft arrangements b3 foot mounted.
*contact your local baldor office for “l” dimensions.
Vertical electric motor frame size chart pdf. Ag cd p xg xo mounting terminal housing bearings approx. Bb ak bd bg aa ab ac af aj the condensed dimensions shown on these pages are for general reference only and are not for construction. • low voltage to 750kw (<690v) • 3.3kv from 75kw • 6.6kv from 110kw • 11kv from 250kw • 13.2kv from 500kw.
However, the endshields have integral cast iron liners forming the bearing housings. Replace or repair shafts and housings showing obvious signs of wear or damage. Frame aj size 182t 184t 9 6 7 41/2 33/4 21/4 23/4 7/16 65/8 71/8 91/8 91/4 — 1.1250 21/2 25/8 71/4 4 9/32 8.500 83/4 57/8 63/8 3/4 93/8 71/8 21/2 ab de f h lo p t u v ah keyway dia.
B5 d type flange at drive end, no feet. S/speed, 750 r/min, 8 pole actom electrical motors ls6: Electric motor frame size chart pdf.
Motors can be supplied for foot mounting (horizontal), foot and fl ange mounting (horizontal) or fl ange mounting (vertical). B6 foot wall mount with feet on left hand side when viewed from drive end. Weight aj ak bb bd bf aa ab ac (lbs) lower end upper end 213tp 215tp 1 22.32 20.25 10.74 1.122 13.47 9.125 8.25 0.22 10.00 0.44 1”.
The mystery of motor frame size introduction industrial electric motors have been available for nearly a century. (see table a footnote.) in this case, nema calls for 75 hp in the frame size in which iec calls for 50 hp. B7 foot wall mount with feet on right hand side when viewed from drive.
B5 d type flange at drive end, no feet. • vertical or horizontal •. One of the most obvious has been the ability to pack more horsepower in a smaller physical size.
B6 foot wall mount wit h feet on left hand sid e when vie wed from driv e end. Inspect the shaft and housing.check for size and damage; Steel for 560 iec frame frame size 445t through 5810 5011 through 6813;
Horizontal shaft arrangements vertical 3shaft arrangements b3 foot mounted. 182 184 184 213 215 254u 256u 284u 286u 324u 326u 364u 365us 404us/405us 405us/444us 444us/445us 445us. A shaft placed in a vise for mounting should be protected from vise.
From a modest beginning with an electric motor unit in mumbai, hindustan electric motor has set up state of art manufacturing facilities at. B8 ceiling mounted wit h. 324hp thru 447lp basic type:
For frame size 180m, 180l and 200l it can be provided on request. Iec frame motors farm duty motors definite purpose motors unit handling motors brake motors 200 & 575 volt motors iec frame motors 50 hertz motors inverter/vector motors & controls dc motors and controls soft start & dynamic brakes metric iec frame motors, three phase, 60. 450 through 560 iec 5011 through 6813;
However, in larger sizes, they can vary enough to cause concern in some design applications. Remove nicks and burrs with emery paper, and wipe clean with a soft cloth. Frame size 2 pole 4 pole 6 pole ≦100 5200 3600 2400 112 5200 3600 2400 132 4500 2700 2400 160 4500 2700 2400
In that time there have been a great many changes. 204 224 225 254 284 324 326 364 365 404. Frame sizes 213tp ~ 405tp wpi frame size fig no.
Vertical motors explosion proof frame: 2015 company is the leading electric motor manufacturer in india with a proven track record of over four decades. Motors can be designed to compensate for this drop in voltage.
Our commitment to continual innovation and growth is reflected in our motor lines. Rotor entire range of motors is fitted with dynamically balanced aluminum pressure die cast squirrel cage rotors. Frame size shaft diameter (kw) (mm) 55 280m 80 75 315s 85 90 315m 85 110 315l 90 132 315l 90 160 315lx 90 product information:
Electric motor frame size chart pdf. Another important achievement has been the standardization of motors by the national Iec and nema, kw/hp comparisons flow smoothly in smaller ratings.
Cage, 3 phase, induction motors lower than 1000v and smaller than 315 frame size can safely run continuously at the speed in the table below. Mechanical design for applications with a vertical mounting, the upper plug must be. Flange endshields are in cast iron.
Cast iron frame & brackets cast iron frame & brackets cast iron for 500 iec frame & below; 184 184 213 215 254u 256u 284u 324u 326u 364u 365u 404u 405u 444u 445u. Large motors may experience a considerable voltage drop at the motor terminals when started due to large inrush current values.
The overall length or “c”dimension for each catalog 450 through 560 iec 5011 & 5811 449 through 5811 & n6310 through n8810 5812; Shaft all motors are provided with single shaft extension in accordance with is :
